Application case
Curved Motorized Curtain Track
A visual reference for discussing a motorized curtain track along a non-straight path. Use it to frame the route, bend geometry, measurement method, mounting surface, stack position, opening direction and control requirements before the final track is specified.
- Reference type
- Visual application evidence for specification discussion
- Evidence limit
- The footage does not confirm an exact product configuration or performance result
- Next step
- Compare the reference with project drawings, photos and required operation
Opening condition
A curved route must be defined by reliable geometry
A short clip cannot confirm the required radius or fabrication path. Provide a drawing, full-size template or other agreed measurement reference together with fixing, clearance, stack and opening-direction information.
- Plan, elevation or agreed measurement template
- Track route, bends and transition points
- Mounting surface and fixing condition
- Stack location and available clearance
- Single- or center-opening direction
- Fabric concept, power and control path
System direction
Confirm track geometry, fabric direction and motor path together
The final arrangement depends on the actual opening, path, fixing surface, fabric choice, stack requirement, access, power and selected motor/control configuration. Curved geometry should not be inferred from a photograph alone.
- Geometry
- No radius or final route is claimed by this visual reference
- Fabric and stack
- Confirm fabric direction, weight input and clear stacking space
- Installation
- Confirm substrate, fixing, access and power before fabrication discussion
Visible application evidence
What the footage can—and cannot—support

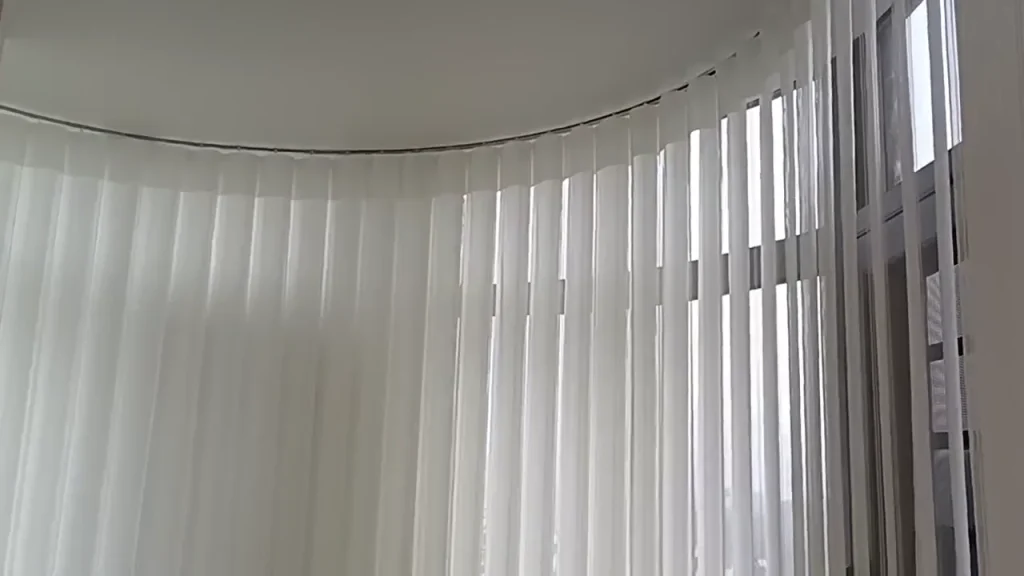

The footage visibly demonstrates a curtain track following a non-straight path. It supports discussion of the visible route and opening behavior, but it does not confirm a particular radius, fabric, motor model or project result.
The video is a direction for discussion. Final material, mounting, motor, control and operating decisions remain specific to the actual opening and selected configuration.
Project inputs
Information needed for a quotation review
- Drawing or reliable measurement template
- Approximate route and bend information
- Width/height reference and quantity
- Mounting surface, clearances and stack location
- Fabric direction and desired opening
- Power, control method and destination
Related systems and planning routes
Application review
Send the curved route before a track configuration is proposed
Send the drawing, opening schedule or clear photos with dimensions, quantity, mounting condition, fabric direction, power availability, desired control method and destination.
